参考标准
TJ/CL313-2014《动车组电线电缆暂行规定》
电话:1484.1-2017
EN50306
产品特点
1.电压等级:300V
2.耐温范围:-40-90℃,-40-105℃
3.截面积:0.5-2.5mm2
4.电缆芯数:1-48芯
5.通过BS6853、DIN5510-2、EN45545-2防火R15、R16(HL3级)
6、弯曲半径:固定敷设5D;非固定敷设6D(D为电缆外径)
7.耐油性:矿物油、燃油
8.耐溶剂、耐酸碱

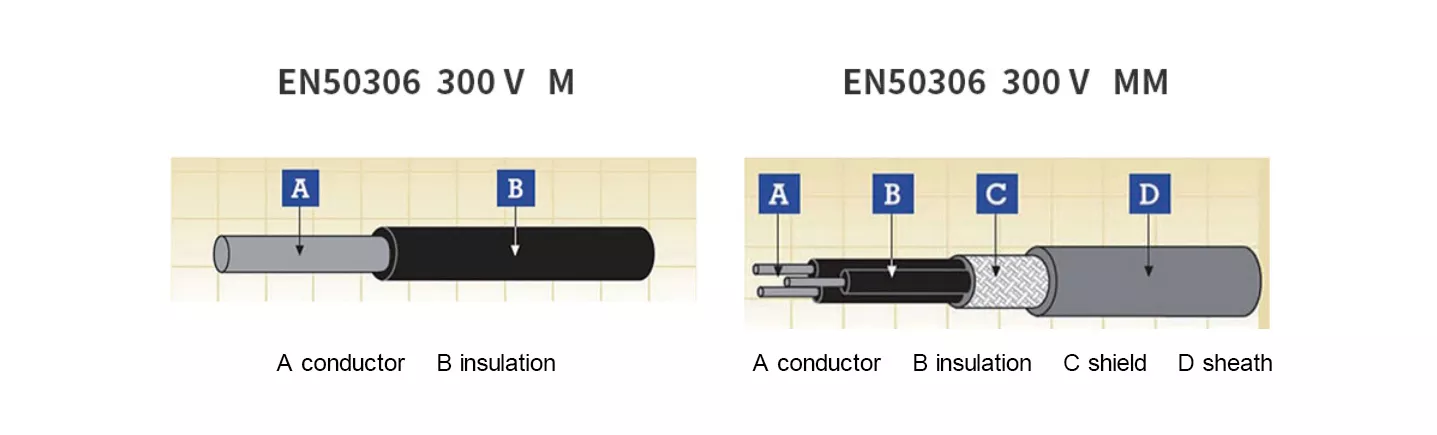

产品结构
产品类别和命名
Product Category | Product number | Product Category | Number of cores | Section squared | Temperature rating |
EN50306series | EN50306-2 300V | Single core thin wall cable | 1 core | 0.5-2.5mm2 | -40-105℃ |
EN50306-4 1P(1E) 300V | Thin-walled multi-core unshielded cable | 2-48 core | 0.5-2.5mm2 | -40-105℃ | |
EN50306-4 3P(3E) 300V | Thin-walled multi-core shielded cable | 2-8 core | 0.5-2.5mm2 | -40-105℃ | |
EN50306-4 5P(5E) 300V | Thin-walled multi-pair shielded cable | 2-7 pair | 0.5-2.5mm2 | -40-105℃ |
